Manufactured Home Water Damage in Lake Elsinore, CA

Manufactured homes are built differently, and water behaves differently in them. A leak drops into the belly wrap under the floor and sits on the insulation, and particleboard subfloors swell fast. The drying team checks under the home and dries or replaces what the water reached.

(888) 450-9281Leak in a manufactured home in Lake Elsinore
Underfloor belly checksSubfloor moisture readingsIICRC S500 drying standard

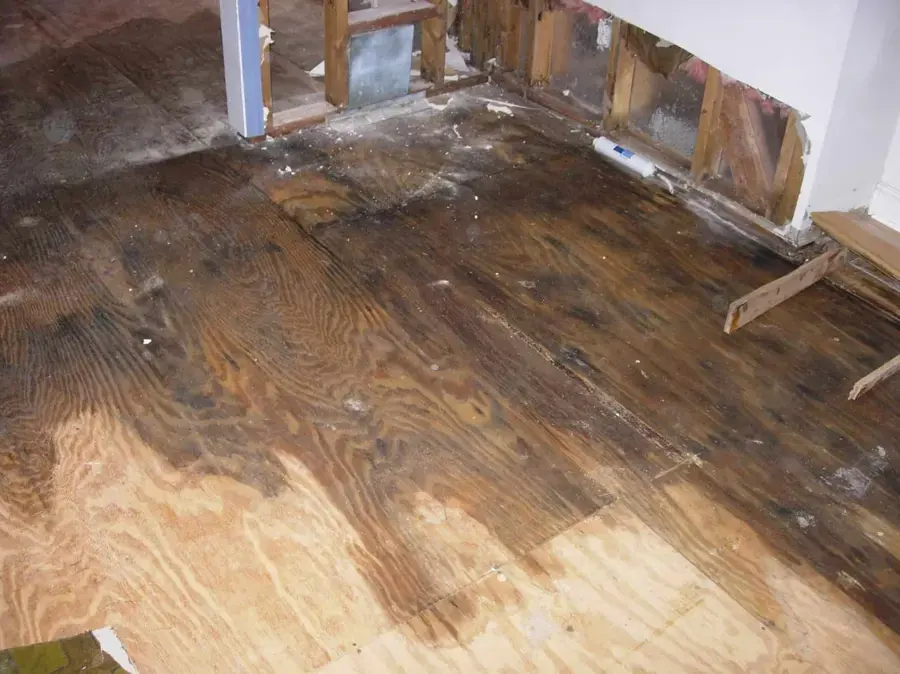

Water-stained plywood subfloor exposed during drying in a Lake Elsinore home
Water categoryCategory 1 to 3
Typical classClass 2 to 3
Key toolsMeters, underfloor access
Drying standardIICRC S500
Right now

First steps for manufactured home water damage in Lake Elsinore

  1. 1

    Shut off the water

    The main valve is usually under the home near where the supply enters.

  2. 2

    Switch off power to wet areas

    At the home's breaker panel, if it is dry.

  3. 3

    Stay off soft floor spots

    Wet particleboard can give way.

  4. 4

    Photograph floors and the underside if safe

    Sagging belly wrap is worth a photo.

  5. 5

    Call a plumber and the drying team

    Repair and drying run back to back.

How the work runs

How manufactured home water damage is handled in Lake Elsinore

  1. L1

    Floor and belly check

    Meters inside, a look underneath for sagging and pooled water.

  2. L2

    Belly drain and insulation out

    Wrap opened where water sits; wet insulation removed.

  3. L3

    Subfloor decisions

    Swollen panels marked for replacement; sound panels dried.

  4. L4

    Drying and reseal

    Air inside and into the belly, then the wrap is patched.

Typical cost ranges

What does manufactured home water damage repair cost in Lake Elsinore, CA?

In Lake Elsinore, CA, manufactured home water damage repair typically runs $900 to $6,500 or more, depending on how much water sits in the belly, how much insulation and subfloor got wet and how many rooms the leak reached.

Small leak, one area$900 to $2,000
  • Floor readings
  • Belly check
  • Spot drying
Wet belly and insulation$2,000 to $4,000
  • Belly opened and drained
  • Insulation removed
  • Subfloor drying
Subfloor replacement$4,000 to $6,500+
  • Swollen panels out
  • Several rooms
  • Belly resealed

Every loss is different, so treat these as typical ranges, not a quote. The water damage cost calculator gives a closer planning range for your own rooms.

Lake Elsinore has several manufactured-home communities, many of them near the lake and along the older roads on the valley floor. These homes sit on piers with a sealed underbelly, and the plumbing runs through the floor system inside that belly. That construction keeps pests and weather out, but it also holds water in when a line leaks.

How water damages a manufactured home

  • Supply lines in the floor leak into the belly wrap and soak the insulation
  • Particleboard or OSB subfloors swell and lose strength when wet
  • Water heater closets and laundry areas sit directly over the belly
  • Roof seams and skylights leak into thin ceiling panels in winter storms

How the drying is handled

The tech who does the walkthrough reads the floors with a moisture meter and checks the belly from underneath for sagging or pooled water. A plumber repairs the leak. Where the belly holds water, a section of the wrap is opened so the water can drain and wet insulation can come out. Swollen particleboard is cut out and replaced after drying; sound subfloor is dried in place. Air movers and an LGR dehumidifier run inside, and air is directed into the belly until readings reach the goal. The belly is patched and resealed at the end.

Particleboard that has swollen at the edges does not shrink back. Drying can stop further damage, but swollen panels are usually replaced.

Homes near the water

Communities near the shoreline also face lake-level and runoff flooding, which is Category 3 and handled with protective gear and full removal of wet materials. The U.S. Department of Housing and Urban Development sets the federal construction code for manufactured homes, and FloodSmart explains flood coverage, which is separate from a standard policy. For lake flooding, see lakeshore flood cleanup.

Coverage

Manufactured home water damage across the Elsinore Valley

The restoration team handles manufactured home water damage in Lake Elsinore, Lakeland Village, Wildomar, Canyon Lake, Menifee, Temescal Valley and Horsethief Canyon, from the lakeshore flats to the canyon neighborhoods on the hills.

ZIP codes 92530, 92531 and 92532, plus Wildomar, Canyon Lake and Menifee.

Every area and ZIP code covered
Questions

Manufactured Home Water Damage questions, answered

Why does water stay under a manufactured home?

The belly wrap is a sealed barrier. When a line inside it leaks, the water pools on the insulation instead of draining to the ground.

Can a particleboard subfloor be dried?

Sound panels can. Panels that swelled at the edges or went soft usually need replacing, because they do not return to shape.

Does the belly wrap have to be replaced?

Usually only a section is opened to drain water and remove insulation, then patched and resealed after drying.

How do I find the main water shutoff?

It is usually under the home near where the supply line comes up from the ground, sometimes with a second valve inside near the water heater.

Are manufactured homes at higher flood risk here?

Communities near the lake and on the valley floor are closer to lake-level and runoff flooding. A flood policy is separate from a standard homeowners policy.

Is manufactured home water damage covered?

Sudden leaks are often covered by a manufactured home policy; floods and long-term leaks often are not. Check your own policy with your insurer.

Emergency water removal, Lake Elsinore

Water damage in a Lake Elsinore manufactured home?

The drying team checks the belly and subfloor, removes what the water ruined and dries the rest until the readings say dry.
